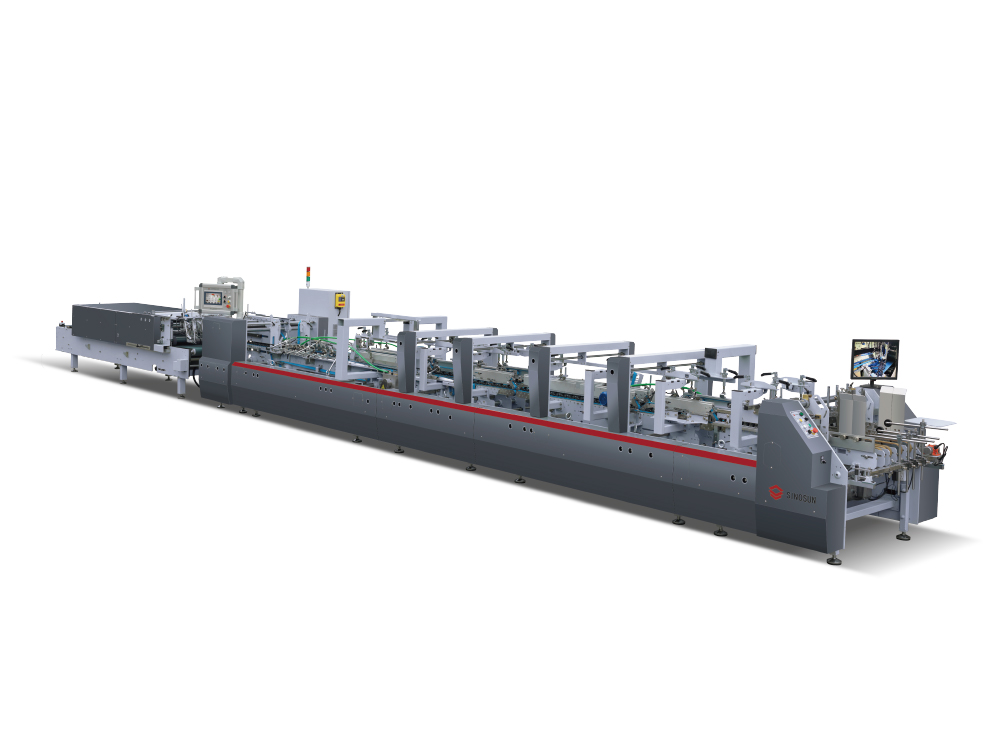

● The transmission mode of the whole machine adopts hexagonal axis and multi wedge belts, by this way,machine is more efficient, energy-saving and noiseless.

● The feeder,main folding,output are all adpoted with independent motors,frequency conversion speed regulation and likage.

Technical parameter

Model	YL-650PC-B	YL-800PC-B	YL-980PC-B
Applicable material	200~800g/m² ( cardboard ) E/N/F flute corrugated board
Speed range	0 ~ 400m/min	0 ~ 400m/min	0 ~ 400m/min
Inching speed	30m/min	30m/min	30m/min
Max blank width	650mm	800mm	980mm

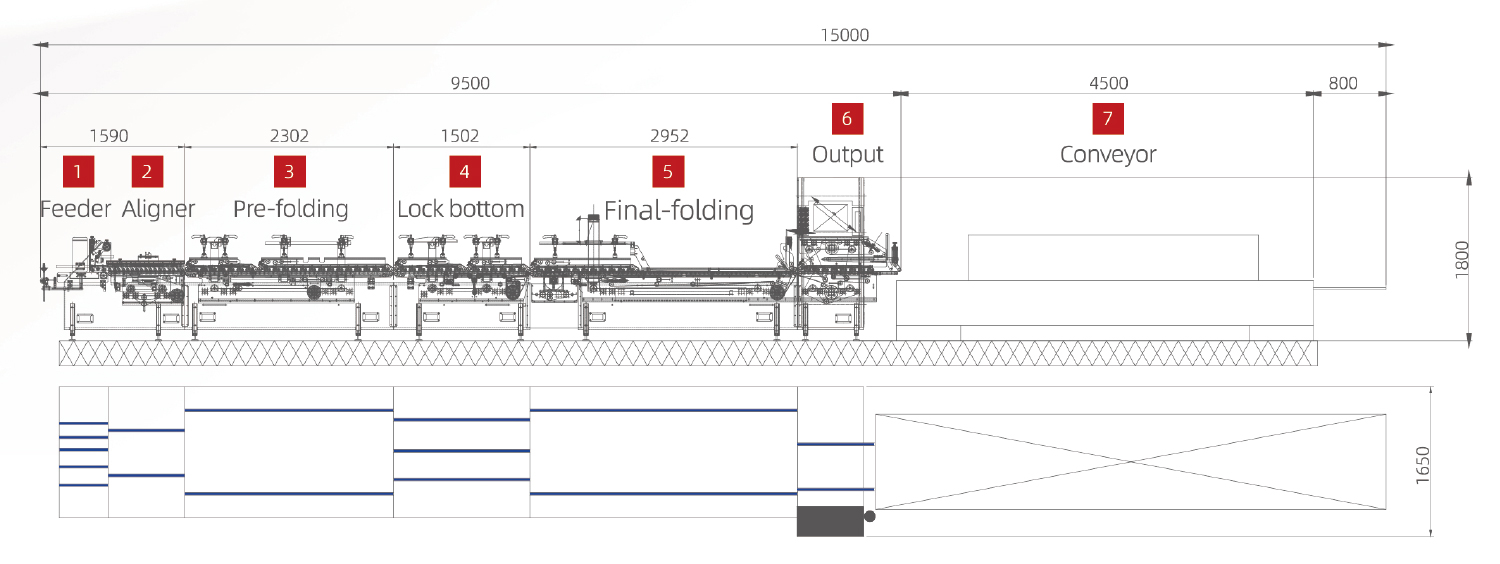

Dimension(LWH)	1500016501800mm	1500018001800mm	1500020001800mm
Mechanical weight	6T	6.5T	7T
Mechanical power	16.5KW	16.5KW	16.5KW
Compressed air	6 bar	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h	10 m³/h
Air tank capacity	60L	60L	60L

Box parameter

Box type	Unfolded view	YL-650PC-B	YL-800PC-B	YL-980PC-B
Linear box		L 100～800 w 130～650 H 60～310	L 100～800 w 130～800 H 60～390	L 100～800 w 130～980 H 60～480
Crash lock bottom box		L 100～800 w 170～600 H 80～290	L 100～800 w 170～800 H 80～390	L 100～800 w 170～980 H 170～980
Four corner box		L 130～800 w 150～500 H 20～150	L 130～800 w 150～800 H 20～150	L 130～800 w 150～930 H 20～150
Six corner box		L 130～800 w 250～650 H 30～150	L 130～800 w 250～800 H 30～150	L 130～800 w 250～930 H 30～150

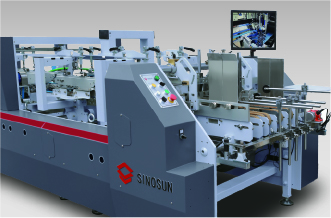

	Feeder ● Independent servo motor drive, with variable speed ● Adjustable vibration motor ● Feeder side baffles can adjust the width ● Two adjustable front feeder knives

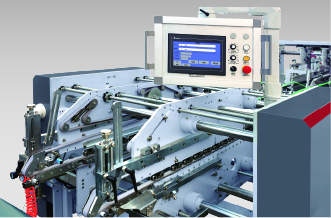

	Aligner ● Independent adjustable side aligner, the lower bracket which is not parallel to the wall board stretches the paper to be transported along a parallel guide,device to ensure that the paper is parallel and aligned

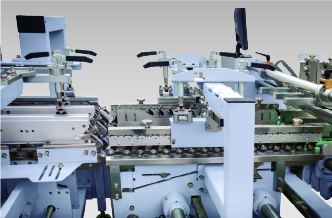

	Pre-folding ● Left upper left 180 ° pre -folded ● The third creasing line 135°pre-folded ● With the pre-folding open device for 1st and ● 3rd creasing line

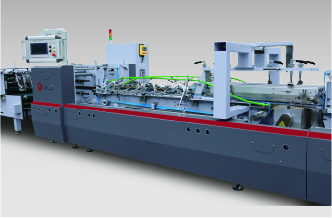

	Lock bottom ● The whole set of frontal lock device ensures the smooth and accurate operation of the bottom lock ● B type lock box accessories

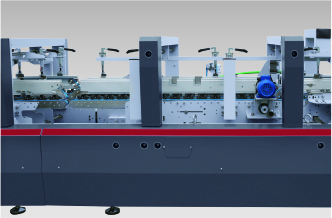

	Final - folding ● Smoothly and accurately finish the second fold line, the fourth fold line 180 ° combined ● Outer folding belts adjustable up to 180°with variable speed ● Two upper and two lower carriers with 25mm lower and 30mm outer belts ● Width adjustable heavy duty compression rollers(optional)

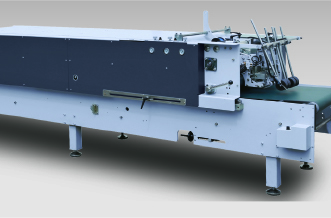

	Output ● Upper and lower brackets are driven separately, easy to adjust each length ● Equipped with belts tension automatic adjustment system ● Continuous and automatic box collection method can ensure well queued boxes transferred to the conveyor section
	Conveyor ● The speed of the delivery pressure part can be adjusted automatically or manually according to the speed of the host machine ● Depending on the length of the box, the output pressure part can move fordward and backward
