● Modular design, can meet different requirements from customers; and be more easier installation and operation , also be more effective to solve the production of special-shaped boxes.

● The transmission mode of the whole machine adopts hexagonal axis and multi wedge belts, by this way,machine is more efficient, energy-saving and noiseless.

● Follow the lightweight design principle, reduce energy consumption and achieve more simple and convenient operation.

Technical parameter

Model	YL-1100PC-B	YL-1100PC-C
Applicable material	200~800g/m² ( cardboard ) N/E/F flute corrugated board
Speed range	0 ~ 400m/min
Inching speed	30m/min
Max blank width	1100mm

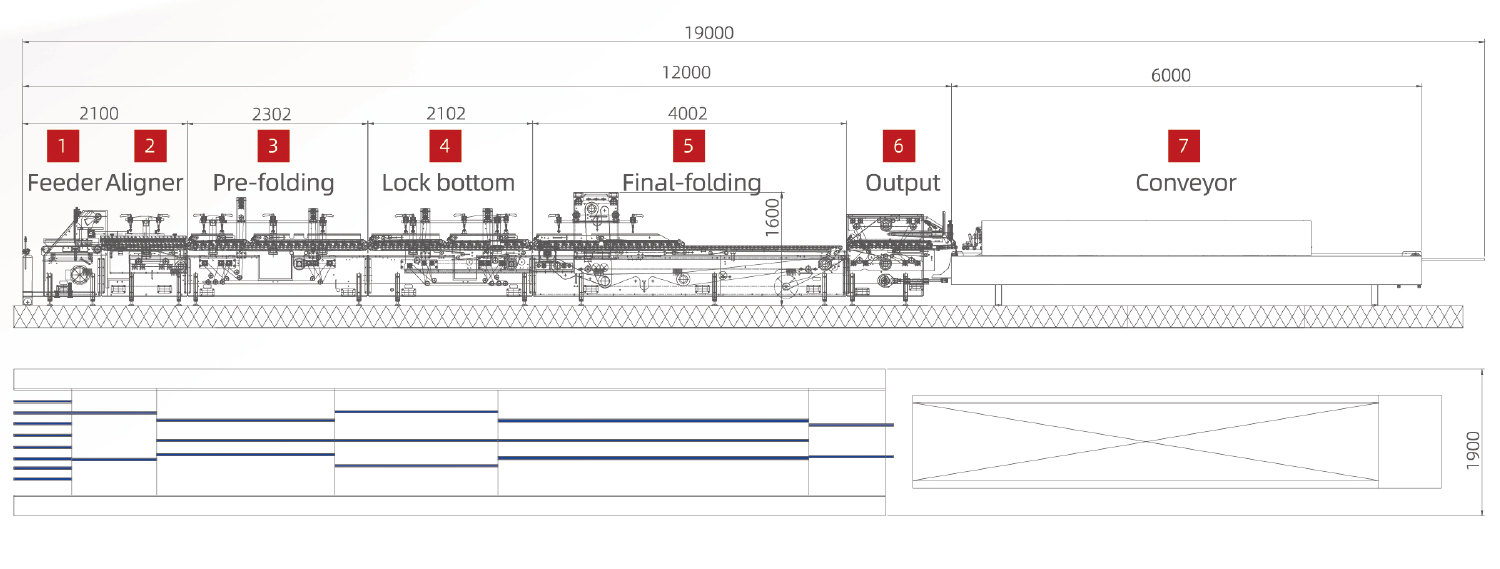

Dimension(LWH)	1900019001600mm
Mechanical weight	9.5T	10T
Mechanical power	22.5KW	26.5KW
Max thickness of folded box	15mm
Compressed air	6 bar
Air compressor capacity	10 m³/h
Air tank capacity	60L

Box parameter

Box type	Unfolded view	YL-1100PC-B/C	YL-1100PC-C
Linear bo		L 140 ~ 1000 w 230～1100 H 105～540
Crash lock bottom box		L 140 ~ 1000 w 240～1100 H 110～540	L 140 ~ 1000 w 300 ~ 1100 H 140 ~ 540
Four corner box		L 140～1000 w 210～1050 H 30～150
Six corner box		L 140～1000 w 310～1050 H 30～150
Flat box		L 150～500 w 400～1100 H 190～540

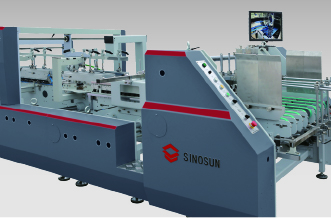

	Feeder ● Independent servo motor drive ● Adjustable vibration motor ● Two sets of adjustable feeder knives ● Adopt high performance suction belts to realize the stability of paper feeding
	Aligner ● Independent adjustable side aligner, the lower bracket which is not parallel to the wall board stretches the paper to be transported along a parallel guide ● device to ensure that the paper is parallel and aligned ● Simple, fast and flexible operation

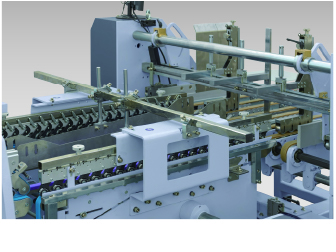

	Pre-folding ● Left upper left 180 ° pre -folded ● The third creasing line 135 ° pre - folded ● With the pre - folding open device for 1st and 3rd creasing line

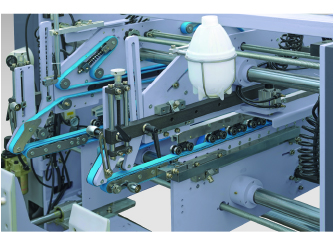

	Lock bottom ● The whole set of front bottom locking device ensures the smooth and accurate bottom locking operation ● B type lock bottom box accessories

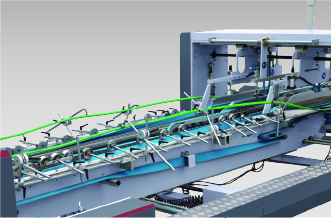

	Final-folding ● The upper and lower belts main drive to ensure paper delivery smoothly ● The middle plate adopts pneumatic lifting to facilitate the production of small box with ● left and right guide plates
	Output ● The telescopic rod of upper and lower brackets can be adjusted independently ● Equipped with automatic belt tension adjustment system
