Main Machines
Intelligent Automatic Folder Gluer with Double Feeder & Stitching
HL-1650/2000/2400/2800AB-S
Main feature
- Full servo parameterization setting,easier installation & operation
- Linear slide rail structure,promise easier adjustment for guide plates
- One key adjustment,memory storage can save max.4000jobs parameter
- Optional equipped with upper suction anti-scratched feeding device
- Upper & lower servo aligner auto adjustment and data record,quick response for necessary adjustment
- Optional equipped with anti-mixing inspection that can avoid wrong connecting A/B sides
- Secondary creasing parts help to avoid glued flap folding skewing problem

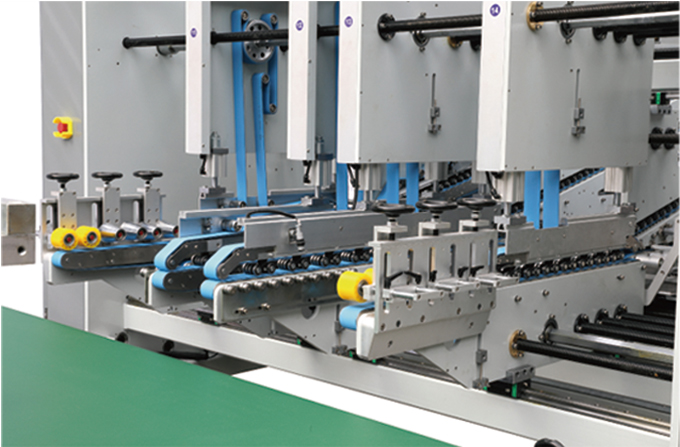

- Sectionalized & adjustable folding knives,allow more higher production capacity
- Independent servo control aligner,suitable for kinds of flat box and special box
- The intelligent tracking system,automatically track & adjust data when if error
- Upper and lower both sides stitching are all servo controlled
- Break traditional stitching process, no limited side width,no carton flipping,can save half space than traditional production line
- Can connect with auto bundling & packing production line,further reduce labor cost and improve production efficiency
Technical parameter
| Model | HL-1650AB-S | HL-2000AB-S | HL-2400AB-S | HL-2800AB-S |
| Applicable material | A/B/C/E/EE/BC/EB/AB flute corrugated board | |||
| Speed range | 0-120m/min | 0-120m/min | 0-120m/min | 0-120m/min |
Inching speed | 20m/min | 20m/min | 20m/min | 20m/min |
Max blank width | 1600mm | 1900mm | 2300mm | 2700mm |

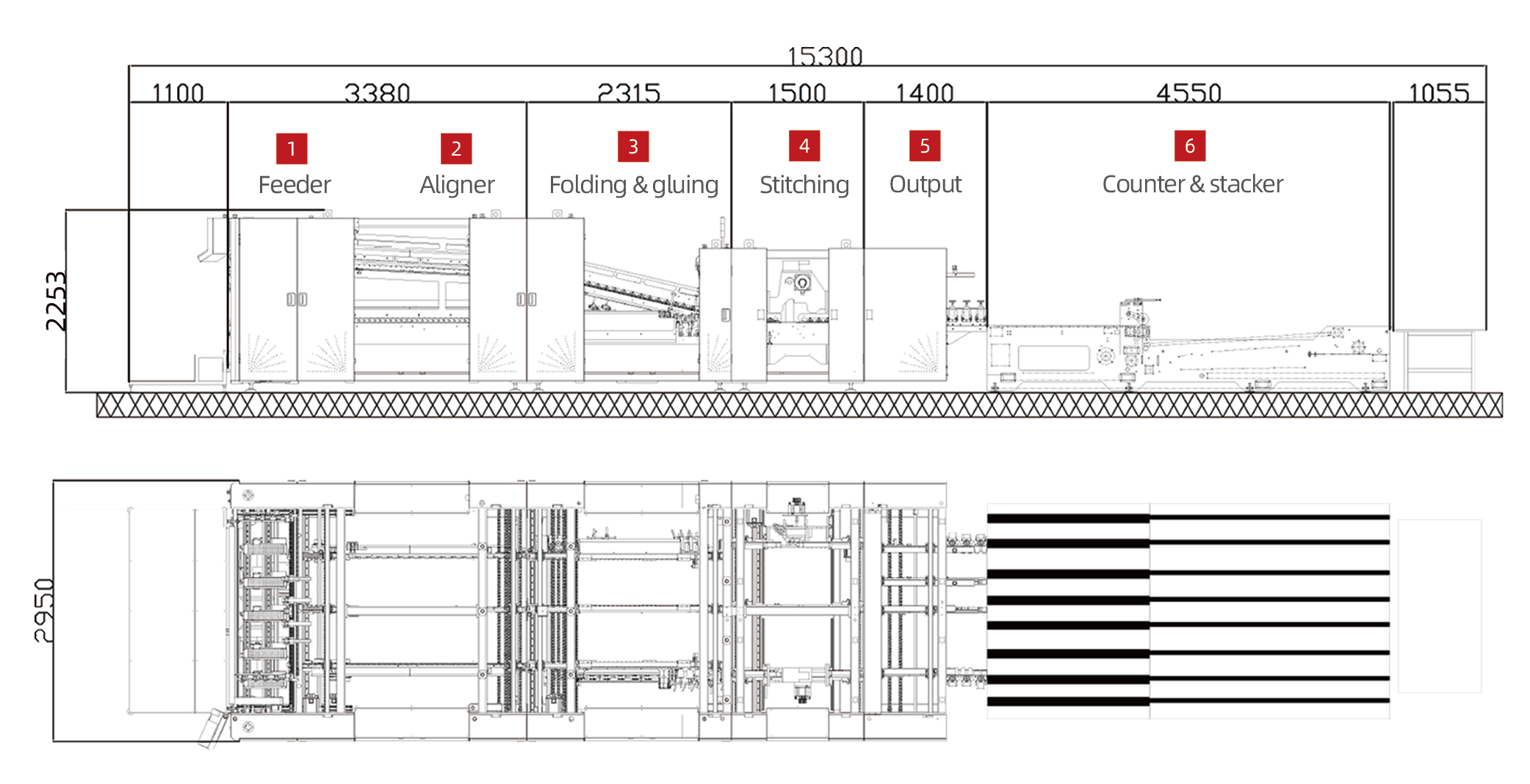

Dimension(L*W*H) | 15300*2600*2253mm | 15300*2950*2253mm | 16230*3350*2253mm | 16800*3750*2253mm |
Mechanical weight | 约18T | 约19.5T | 约21.5T | 约23.5T |
Mechanical power | 81KW, AC380V | 81KW, AC380V | 81KW, AC380V | 85KW, AC380V |
Max thickness of folded box | <12mm | <12mm | <12mm | <12mm |
Compressed air | 0.5~0.7Mpa | 0.5~0.7Mpa | 0.5~0.7Mpa | 0.5~0.7Mpa |
Air compressor energy | 10 m³/h | 10 m³/h | 10 m³/h | 10 m³/h |
| Air tank capacity | 60L | 60L | 60L | 60L |
Box Parameter
| Box type | Unfolded view | HL-1650AB-S | HL-2000AB-S | HL-2400AB-S | HL-2800AB-S | ||

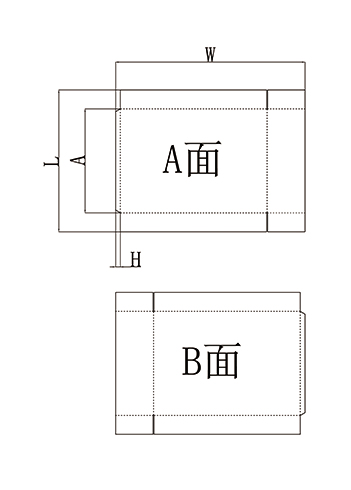

| Flat box |  | Gluing titching | W | 500~1600 | 500~1900 | 500~2300 | 500~2700 |
| W | 650~1600 | 650~1900 | 650~2300 | 650~2700 | |||
| L | 400~1300 | 400~1500 | 400~1500 | 400~1500 | |||
| A | 300~1000 | 300~1000 | 300~1000 | 300~1200 | |||
| H | 3PLY | 30~50 | |||||
5PLY | 40~50 | ||||||

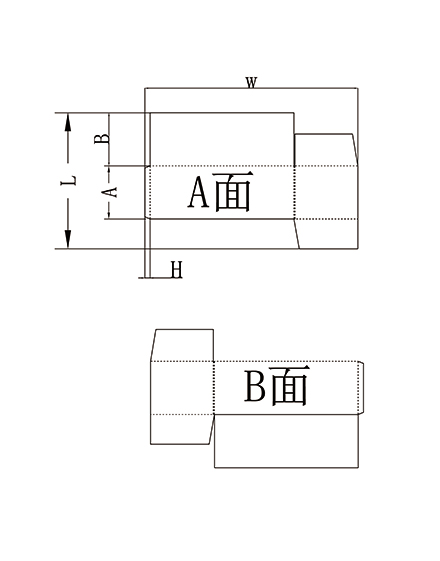

| Special-shaped box |  | Gluing titching | W | 500~1600 | 500~1900 | 500~2300 | 500~2700 |
| W | 650~1600 | 650~1900 | 650~2300 | 650~2700 | |||
| L | 400~1300 | 400~1500 | 400~1500 | 400~1500 | |||
| A | 300~1000 | 300~1000 | 300~1000 | 300~1200 | |||
| B | 0~200 | ||||||
| H | 3PLY | ||||||
5PLY |
Details
 |  |  |  |

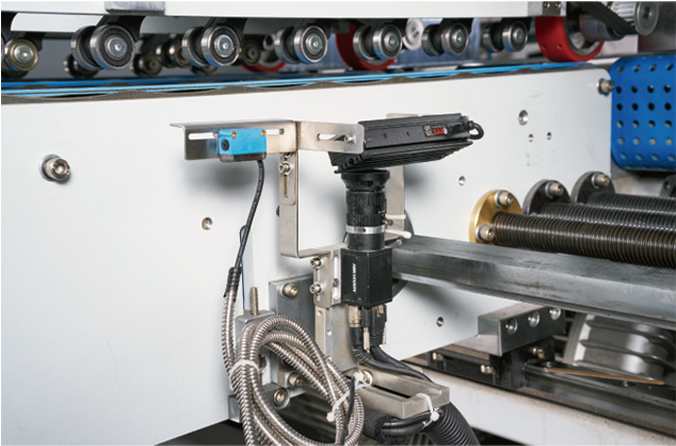

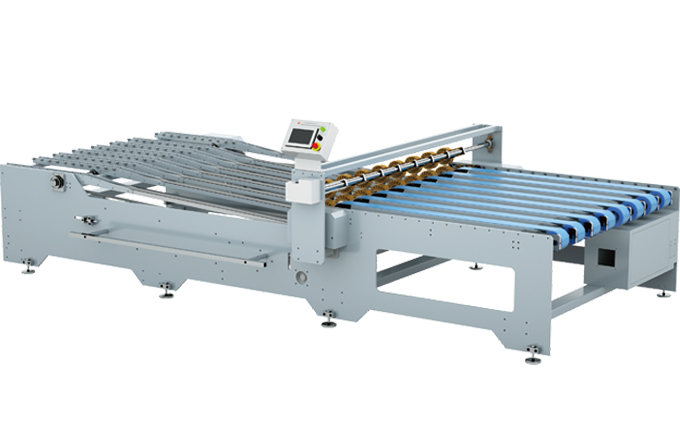

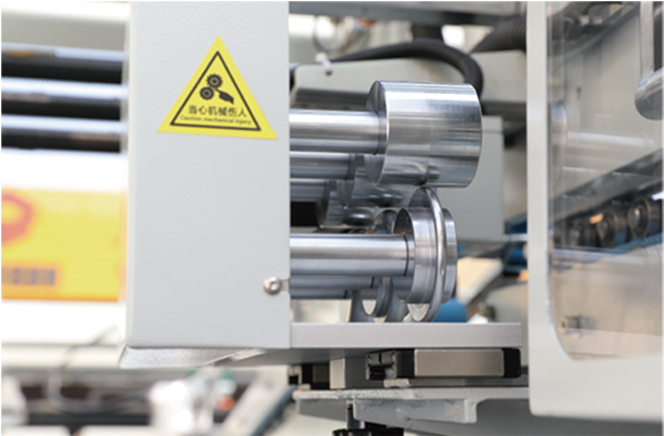

| Anti-mixing inspection | Secondary pre-creasing line | Output | Auto counter and stacker |
