High-speed Automatic Multifunctional Climbing Folder Gluer
- Model： YL-800/980PC-C
- Parameters
- Model： YL-800/980PC-C

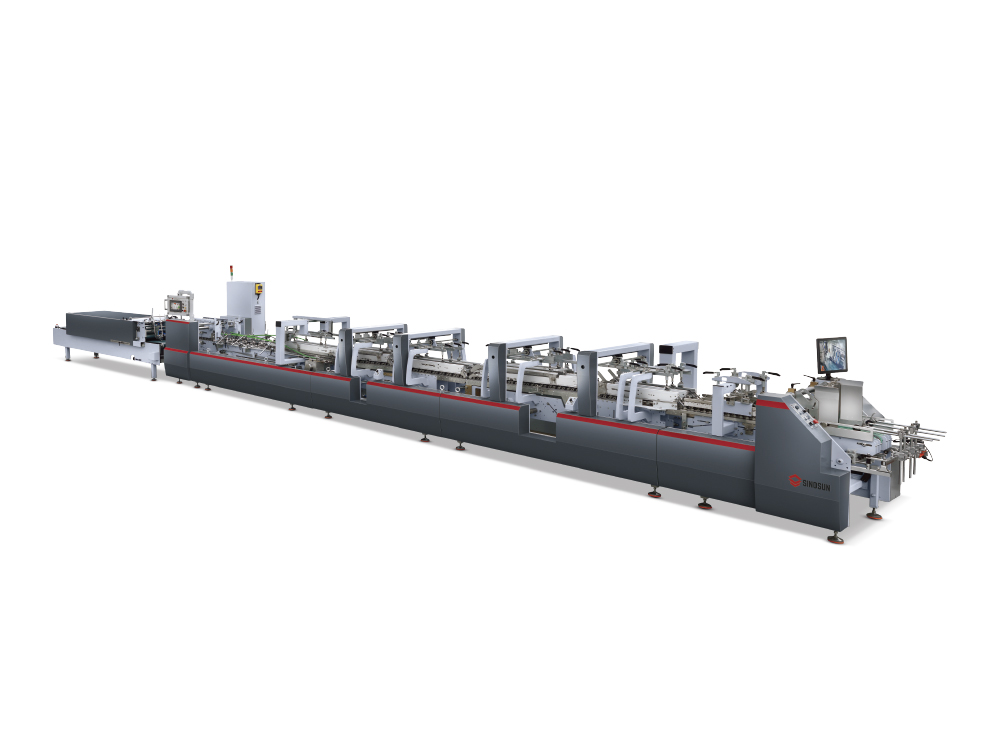

High-speed Automatic Multifunctional Climbing Folder Gluer
Main feature
● Follow the lightweight design,can help reducing noise,improve machine controllability and reliability
● The modular design can perfectly adapted to many kinds of boxes,the optional mechanical parts are easy to disassemble and install back.
● The transmission mode of the whole machine adopts hexagonal axis and multi wedge belts, by this way,machine is more efficient, energy-saving and noiseless.
● The feeder,main folding,output are all adpoted with independent motors,frequency conversion speed regulation and likage.
Technical parameter
| Model | YL-800PC-C | YL-980PC-C |
| Applicable material | 200~800g/m² ( cardboard ) N/E/F flute corrugated board | |
| Speed range | 0 ~ 400m/min | 0 ~ 400m/min |
| Inching speed | 30m/min | 30m/min |
| Max blank width | 800mm | 980mm |

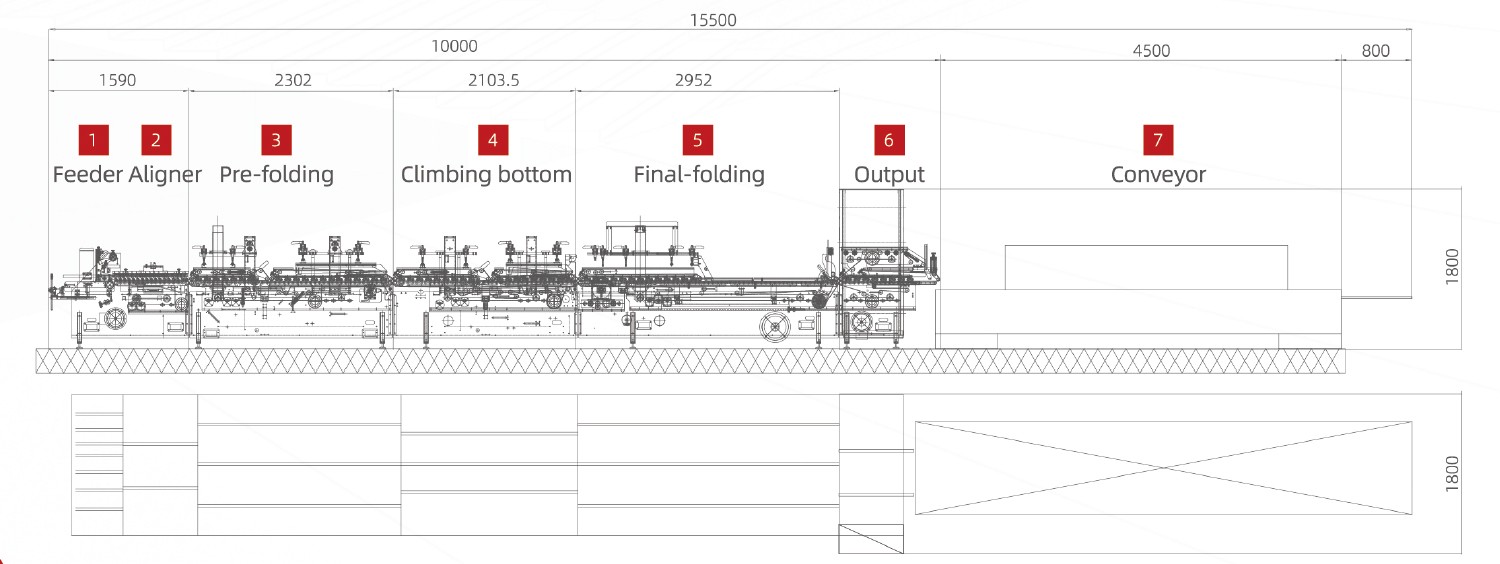

| Dimension(L*W*H) | 15500*1800*1800mm | 15500*2000*1800mm |
| Mechanical weight | 7T | 7.5T |
| Mechanical power | 16.5KW | 16.5KW |
| Max thickness of folded box | 15mm | 15mm |
| Compressed air | 6 bar | 6 bar |
| Air compressor capacity | 10 m3/h | 10 m3/h |
| Air tank capacity | 60L | 60L |
Box parameter
Box type | Unfolded view | YL-800PC-C | YL-980PC-C |
Linear box |  | L 100～800 w 130～800 H 60～390 | L 100～800 w 130～980 H 60～480 |
Crash lock bottom box |  | L 100～800 w 170～800 H 80～390 | L 100～800 w 170～980 H 80～480 |
Flat box |  | L 130～800 w 150～800 H 20～150 | L 130～800 w 150～930 H 20～150 |
| Six corner box |  | L 130～800 w 250～800 H 30～150 | L 130～800 w 250～930 H 30～150 |

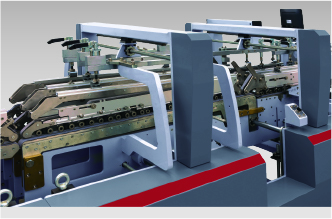

 | Pre-folding ● Left upper left 180°pre-folded ● The third creasing line 135°pre-folded ● With the pre-folding open device for 1st and ● 3rd creasing line |

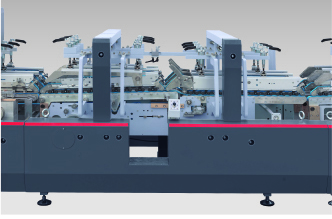

 | Climbing bottom ● One-botton electric lifting, easy to operate, greatly improve the production efficiency, chieved more stable folding process |
