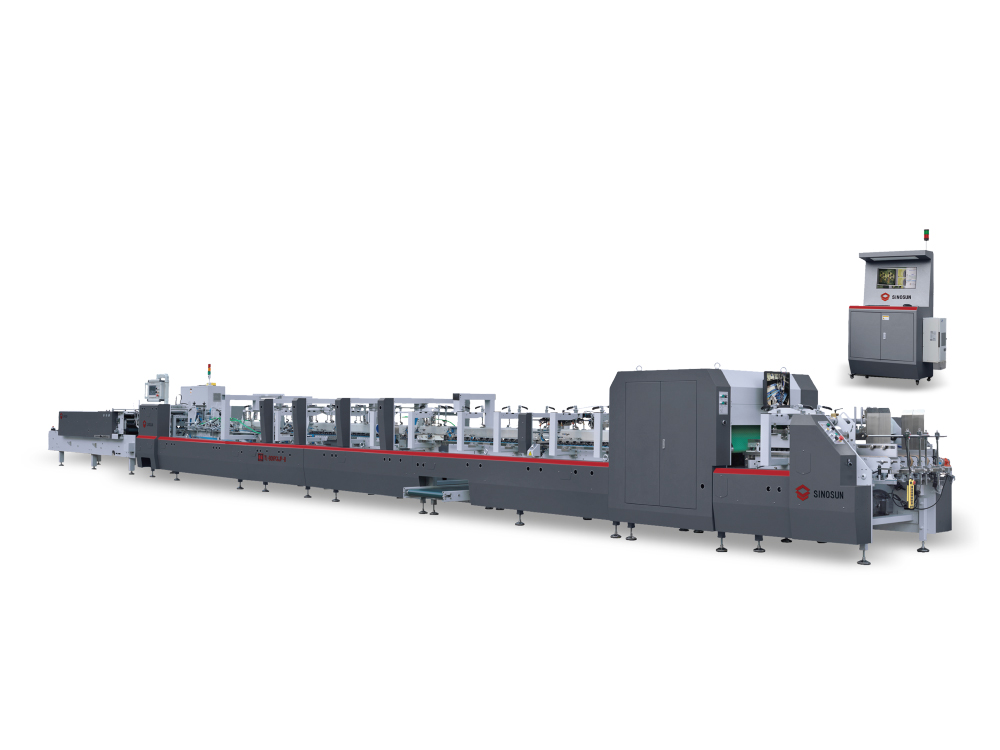

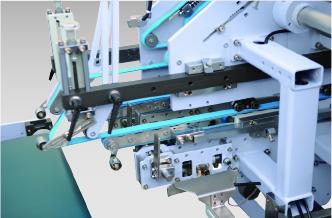

High-speed Automatic Multifunctional Folder Gluer with Online Inspection

  • Model: YL-650/800/1100PC&IP

  • Parameters
  • Model: YL-650/800/1100PC&IP

High-speed Automatic Multifunctional Folder Gluer with Online Inspection


Main feature

● According to the characteristics of the printing process,folder gluer adpots integrated mode with inspection function, and the waste detection system is equipped to improve the production efficiency. To ensure that the quality of finished boxes can be guaranteed during high-speed production.

● By selecting different areas inspection,can detect full printing quality  such as missed printing, white spot, color difference and incomplete font etc..

● Powerful detection algorithm to adapt to different customers' different requirements for quality; The operation is simple. The detection parameters can be saved and called again, and the parameter can be called back in a few seconds.


Technical parameter

Model

YL-650PC&JP

YL-800PC&JPYL-800PC&JP
Applicable material

200~650g/m² ( cardboard )

Speed range0 ~ 400m/min0 ~ 400m/min0 ~ 400m/min
Inching speed30m/min30m/min30m/min
Max blank width650mm800mm1100mm

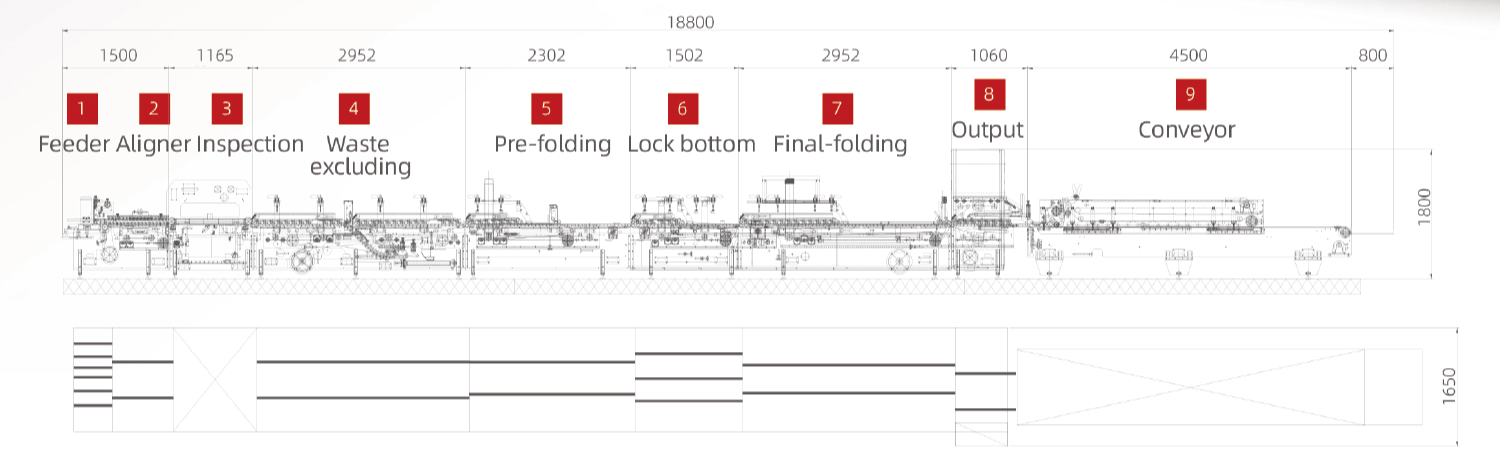

Dimension(L*W*H)18800*1650*1800mm18800*1800*1800mm20000*2100*1800mm
Mechanical weight8.5T9T10.5T
Mechanical power28KW34KW38KW
Compressed air6 bar6 bar6 bar
Air compressor capacity10 m3/h10 m3/h10 m3/h
Air tank capacity60L60L60L


Technical parameter

Model

Min.defect inspection accuracy

Front inspection item


Min.defect inspection accuracy0.15mm² (high contract ) 0.25mm² (low contract)
Min.linear defect inspection size

width≥0.15mm  length≥5mm(high contrast)

width≥0.25mm  length≥5mm(low contrast)

Image acquisition resolution

4K camera: 0.15mm(width) x 0.15 mm(length)

8K camera: 0.1mm(width) x 0.15mm(length

Min.color difference inspection△E ≥3
Overprint deviation inspection±0.15mm
Customer code inspection item
Inspection content

Variable code recognition ,comparison and

appearance inspection

Barcode types

QR code,digital code,electronic regulatory

code,Code 128C,20digits

Data comparison error type

Comply with the drug regulatory code printing

specificatio

Appearance inspection error typeRecognize and compare the repeated

code,missed code ,error code

Back inspection itemBarcode dirty, barcode corner missing,number

missing,number dirty,printing shift

Min.defect inspection accuracy0.2mm² (high contract)  0.4mm² (low contract)
Image acquisition resolution8K camera: 0.15mm(width) x 0.15 mm(length)

Note: High contrast indicates the average gray level difference between defection and background is≥ 30DN (gray level)

          Low contrast indicates the average gray level difference between defection and background is ≥ 10DN and ≤30DN



Inspection

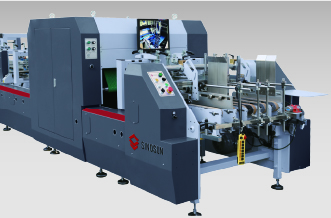

● Equipped with professional cameras and lenses, the high-speed operation is still accurate  and  stable

● Adopted with vacuum suction theory, to ensure the smooth delivery box,which is characterized by low power, low noise and energy saving

● Easy operation,the inspection  parameters can be saved and called again, and the parameter can be called back in a few seconds

Waste excluding

● Multi air nozzle combination, air nozzle position can be adjusted according to the box types, non-contact waste excluding  method can help avoiding secondary  scratches

● Equipped with independent and convenient  waste collection device

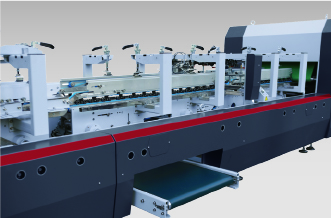

Output

● The upper and lower brackets are driven separately,easy to adjust each length

● Equipped with belts tension automatic adjustment system

● Continuous and automatic box collection method can  ensure well queued boxes transferred to the conveyor section




High-speed Automatic Multifunctional Folder Gluer with Online Inspection
Long press to look detail
Long by picture save/share
