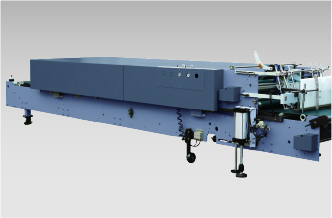

Multifunctional Heavy-duty Automatic Folder Gluer

HL series wide format heavy-duty folder gluer is mainly applied for the 3 layers and 5 layers color printing corrugated boxes that from rotary die-cutting and slotting processes.

Model： HL-1450/1650/1850PC-A

Parameters

Model： HL-1450/1650/1850PC-A

Mechanical Details

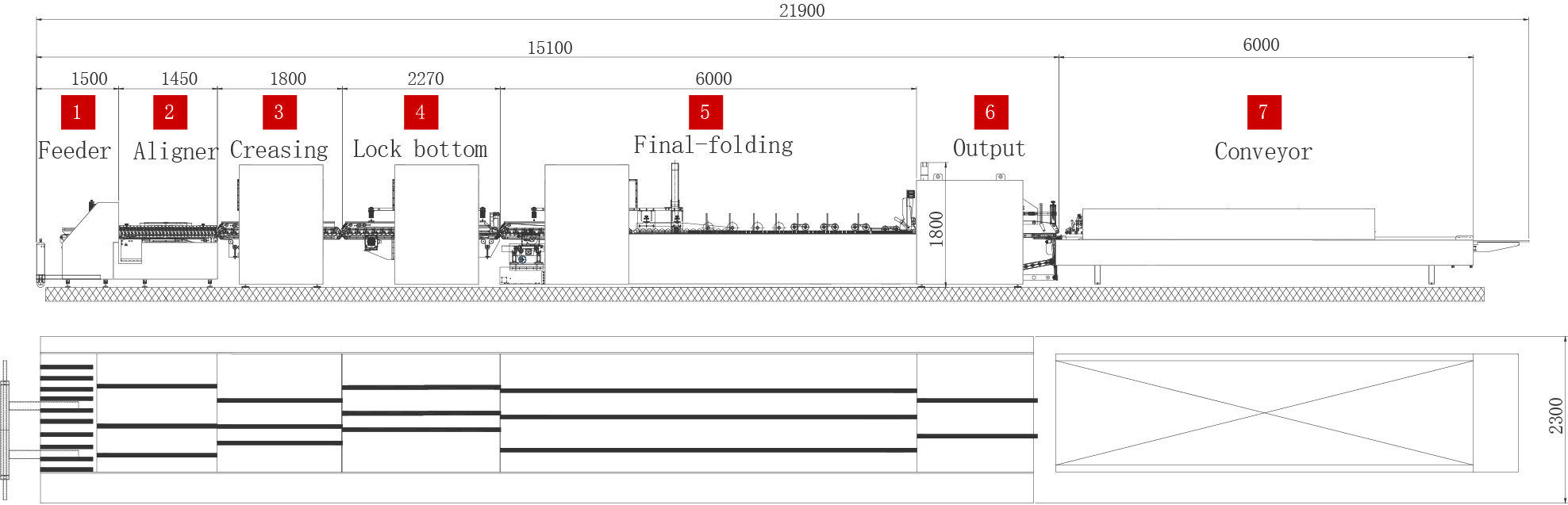

Machine layout

Multifunctional Heavy-duty Automatic Folder Gluer

Main feature

● Optional for one-button adjustment, intelligent memory and storage functions.

● The modular design realizes different functional configurations according to customer needs, Each group of modules adopts servo motors, which are driven independently and have stable, convenient, accurate and efficient performance.

● Equipped with high-precision linear guide rail and electric plate moving device.

HL series wide format heavy-duty folder gluer is mainly applied for the 3 layers and 5 layers color printing corrugated boxes that from rotary die-cutting and slotting processes.

Technical parameter

Model	HL-1450PC-A	HL-1650PC-A	HL-1650PC-A
Applicable material	250~800g/m² ( cardboard ) E/C/B flute corrugated board
Speed range	0 ~ 200m/min	0 ~ 200m/min	0 ~ 200m/min
Inching speed	30m/min	30m/min	30m/min
Max blank width	1450mm	1650mm	1850mm
Dimension(LWH)	2190023001860mm	2190025001860mm	2190027001860mm
Mechanical weight	13.5T	14.5T	15.5T
Mechanical power	54KW	56KW	56KW
Max thickness of folded box	15mm	15mm	15mm
Compressed air	6 bar	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h	10 m³/h
Air tank capacity	60L	60L	60L

Box parameter

Box type	Unfolded view	HL-1450PC-A	HL-1650PC-A	HL-1850PC-A
Linear bo		L 140 ~ 1300 w 650 ~ 1450 H 310 ~ 710	L 140 ~ 1300 w 650 ~ 1650 H 310 ~ 810	L 140 ~ 1300 w 650 ~ 1850 H 310 ~ 910
Crash lock bottom box		L 140 ~ 1300 w 750～1450 H 360～710	L 140 ~ 1300 w 750 ~ 1650 H 360 ~ 810	L 140 ~ 1300 w 750 ~ 1850 H 310 ~ 910
Flat box		L 280～1000 w 650 ~ 1450 H 310 ~ 710	L 280～1000 w 650 ~ 1650 H 310 ~ 810	L 280～1000 w 650 ~ 1850 H 310 ~ 910

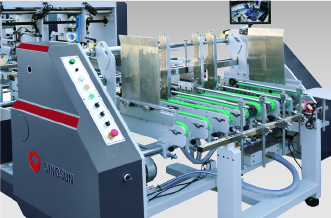

	Feeder ● Independent servo motor drive ● Adjustable vibration motor ● The right baffle is equipped with motor to actively adjust the width ● Three sets of adjustable feeder knives ● Adopt high performance suction belt to realize the stability of paper feeding

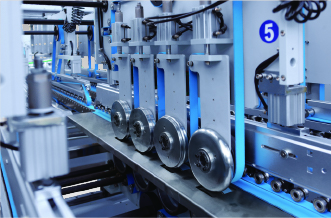

	Creasing ● Special secondary creasing function device ● Equipped with four sets of main drive creasing wheels ● The cylinder regulates the pressure of the lines creasing wheels ● Can effectively improve the bellmouth and tolerance of final-folding boxes ● The main wall panel is equipped with a motor to adjust the width automatically
	Lock bottom ● The whole set of front bottom locking device ensures the smooth and accurate bottom locking operation ● B type lock bottom box accessories,easy and fast operation and control ● The main wall panel is equipped with a motor to adjust the width automatically

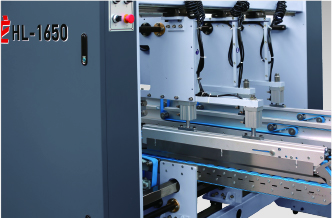

	Conveyor ● Upper and lower both independent servo motor drive ● Upper conveyor equipped with independent motor for the forward and backward moving adjustment according to different box ● Equipped with pneumatic pressure control system, easy to adjust, can effectively ensure the uniform pressure
