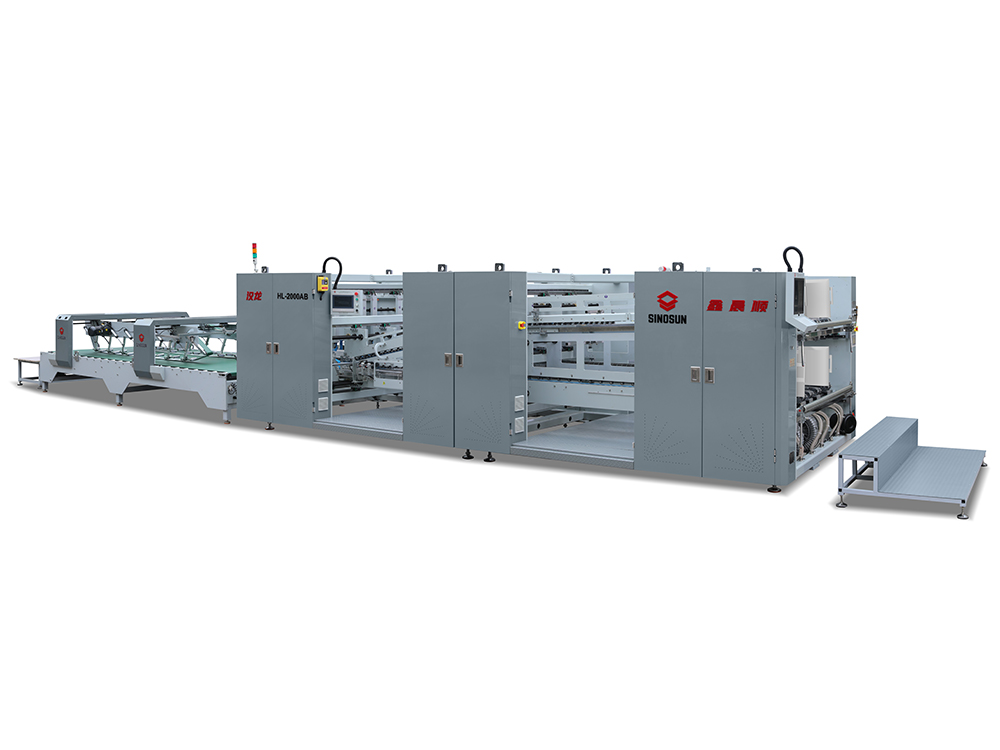

Intelligent Double Feeder Folder Gluer

Fully intelligent(upper & lower) double feeder folder gluer, suitable for 3PLY,5PLY corrugated board,flat box & lock bottom box ,equipped with memory and one-key-adjustment function, takes only about 20 minutes to shift between two jobs, ±1.0mm precise tolerance; max speed 5000+/h, daily output 50000 etc.

  • Model: HL-1650/2000/2400/2800AB

  • Parameters
  • Model: HL-1650/2000/2400/2800AB

HL-1650/2000/2400/2800AB


Main feature

● The front and back alignment servo control is perfectly compatible with all kinds of flat box, special-shaped box etc.

● It is more easier to make the commission with full servo parameterization setting.

● The linear slide rail structure promise the easier adjustment of guide plate, and keep the smooth and stable running.

● The modular design allows for more convenient assembly and disassembly the machine parts.

● Visual inspection to prevent wrong connection of A/B side.

● Creasing line & servo folding can perfectly solve the problem of glue flap folding skewing.

● Equipped with photoelectric counting, can be total count or quantitative count.With storage memory function of processed parameters, can recall back before setting parameters directly in next same job.


Intelligent Double Feeder Automatic Folder Gluer



Technical parameter

Model

HL-1650AB

HL-2000ABHL-2400ABHL-2800AB
Applicable material

A/B/C/E/EE/BC/EB/AB/BCB  flute corrugated board

Speed range0~120m/min0~120m/min0~120m/min0~120m/min
Inching speed20m/min20m/min20m/min20m/min
Max blank width1650mm2000mm2400mm2800mm

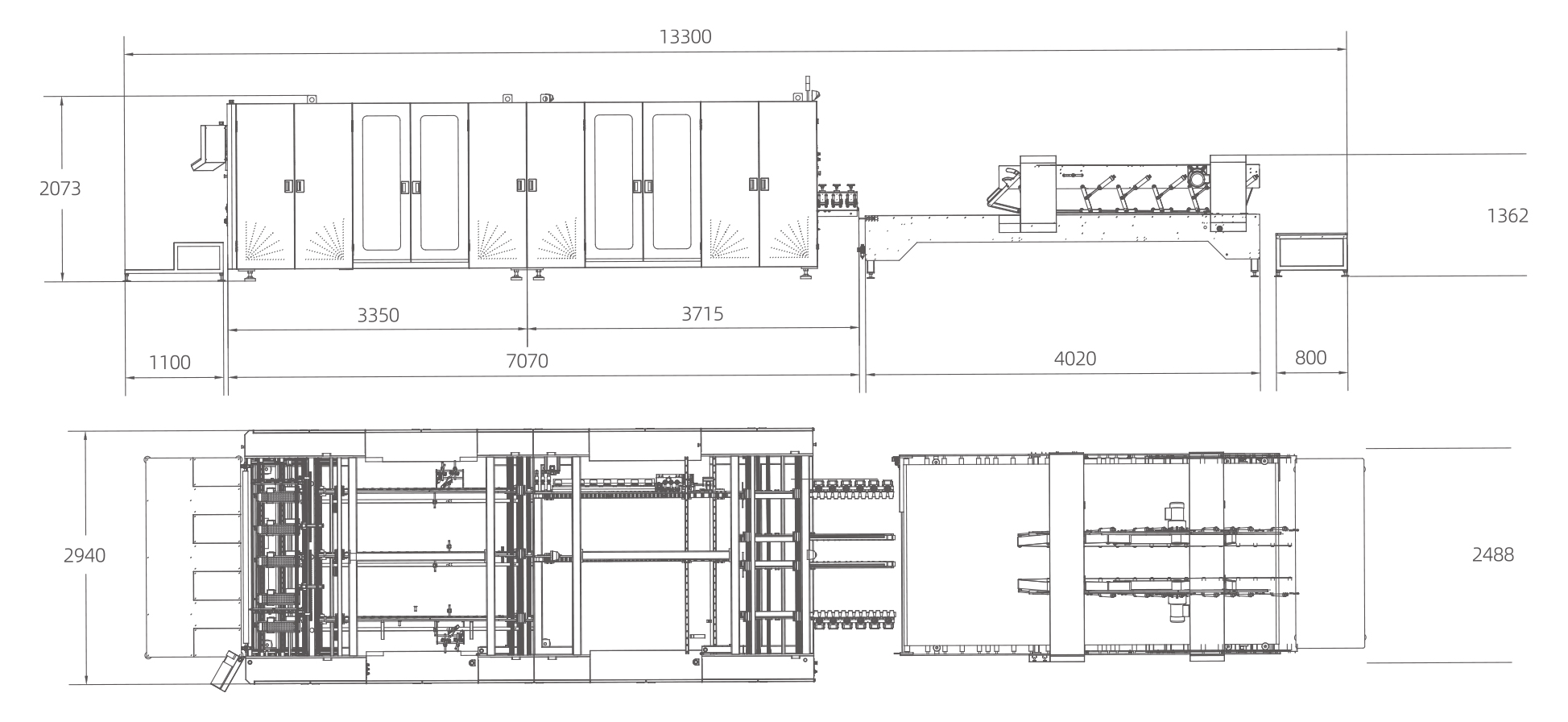

Dimension(L*W*H)13300*2590*2073mm13300*2940*2073mm14200*3340*2073mm14800*3740*2073mm
Mechanical weight≈13.5T14.5T16T17.5T
Mechanical power42KW, AC380V42KW, AC380V42KW, AC380V42KW, AC380V
Max thickness of folded box<10mm<10mm<10mm<10mm
Compressed air0.5~0.7 bar0.5~0.7 bar0.5~0.7 bar0.5~0.7 bar
Air compressor capacity10 m3/h10 m3/h10 m3/h10 m3/h
Air tank capacity60L60L60L60L


Box parameter

Box type

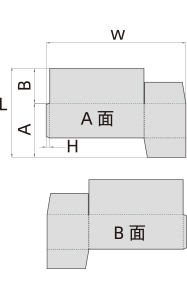

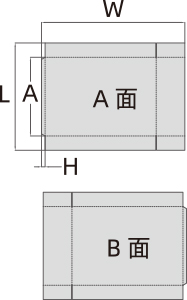

Unfolded view

HL-1650AB

HL-2000AB

HL-2400AB

HL-2800AB

Flat box

w  500mm - 1650mm

L  400mm - 1300mm

A  300mm-1000mm

w  500mm - 2000mm

L  400mm - 1500mm

A  300mm-1000mm

w  500mm - 2400mm

L  400mm - 1500mm

A  300mm-1000mm

w  500mm - 2800mm

L  400mm - 1500mm

A  300mm-1000mm

H
3PLY 30mm-50mm

5PLY 40mm-50mm

7PLY 45mm-55mm

Special-shaped box

B  0mm-200mm

w  500mm - 1650mm

L  400mm - 1300mm

A  300mm-1000mm

B  0mm-200mm

w  500mm - 2000mm

L  400mm - 1500mm

A  300mm-1000mm

B  0mm-200mm

w  500mm - 2400mm

L  400mm - 1500mm

A  300mm-1000mm

B  0mm-200mm

w  500mm - 2800mm

L  400mm - 1500mm

A  300mm-1000mm

H
3PLY 30mm-50mm

5PLY 40mm-50mm

7PLY 45mm-55mm

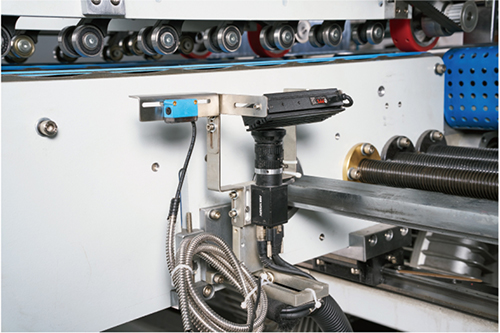

Anti-mixing inspection



Secondary pre-creasing line

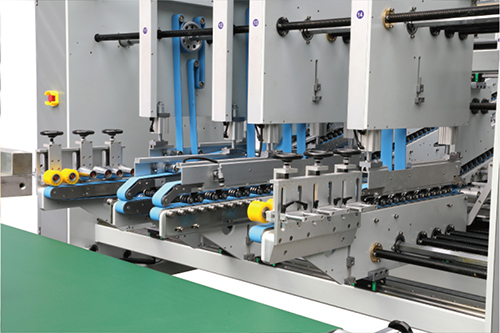

Forming and pressing section

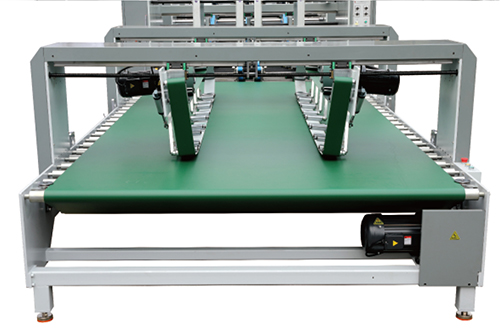

Conveyor
