Wide Format Heavy-duty Automatic Folder Gluer

HL series wide format heavy-duty folder gluer is mainly applied for the 3 layers and 5 layers color printing corrugatedboxes that from rotary die-cutting and slotting processes.

Model： HL-2000/2400/2800AC-A

Parameters

Model： HL-2000/2400/2800AC-A

Mechanical Details

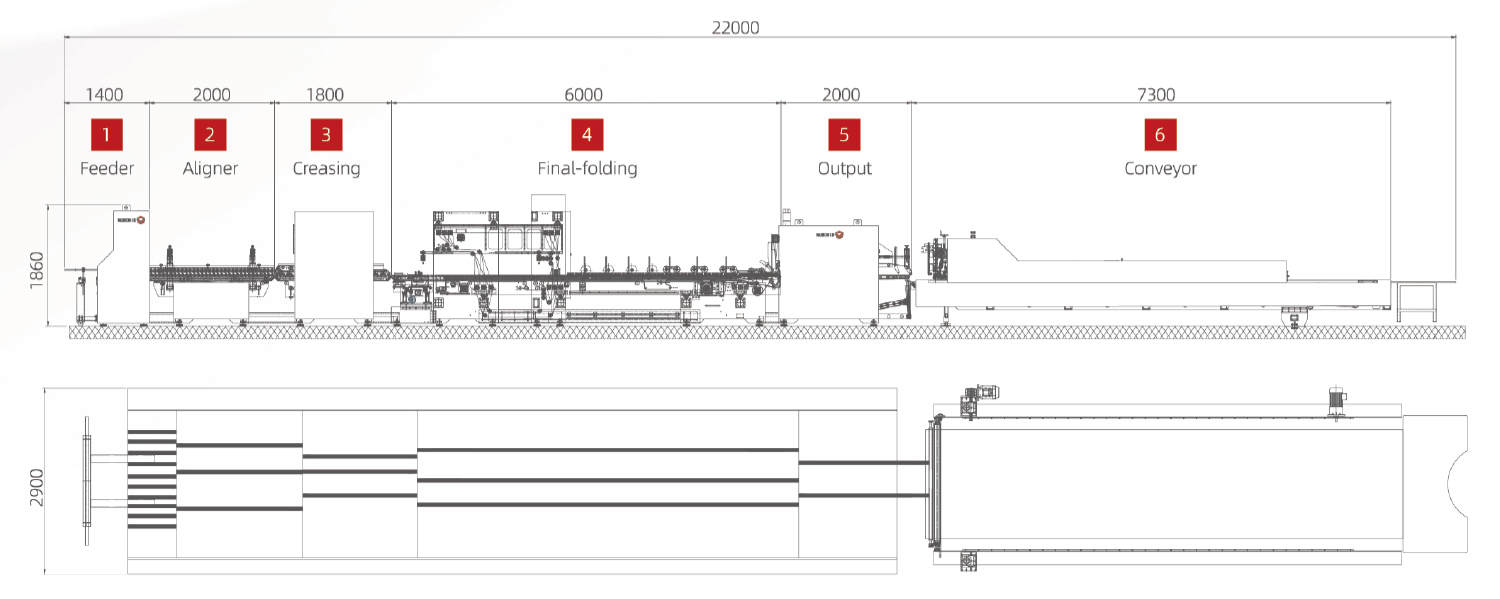

Machine layout

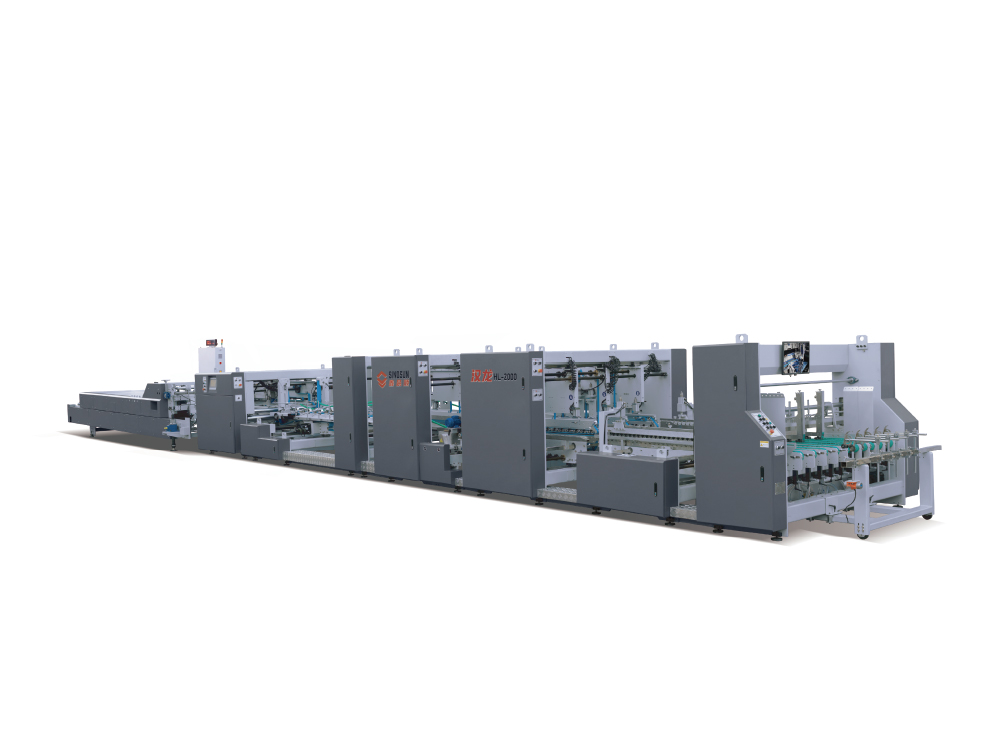

Wide Format Heavy-duty Automatic Folder Gluer

Main feature

● The modular design realizes different functional configurations according to customer requirements, each module driven by independent servo motor, to ensure machines at stable,convenient,accurate,efficient and otherperformance.

● Equipped with high-precision linear guide rail and electric moving plates device.

HL series wide format heavy-duty folder gluer is mainly applied for the 3 layers and 5 layers color printing corrugatedboxes that from rotary die-cutting and slotting processes.

Technical parameter

Model	HL-2000AC-A	HL-2400AC-A	HL-2800AC-A
Applicable material	250~800g/m² ( cardboard ) E/C/B flute corrugated board
Speed range	0~200m/min	0~200m/min	0~200m/min
Inching speed	30m/min	30m/min	30m/min
Max blank width	2000mm	2400mm	2800mm
Dimension(LWH)	2200029001860mm	2200033001860mm	2200037001860mm
Mechanical weight	15.5T	16.5T	17.5T
Mechanical power	56KW	56KW	61KW
Max thickness of folded box	15mm	15mm	15mm
Compressed air	6 bar	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h	10 m³/h
Air tank capacity	60L	60L	60L

Box parameter

Box type	Unfolded view	HL-2000AC-A	HL-2400AC-A	HL-2800AC-A
Linear bo				L 140 ~ 1300 w 650 ~ 2800 H 310 ~ 7380
Crash lock bottom box
Flat box

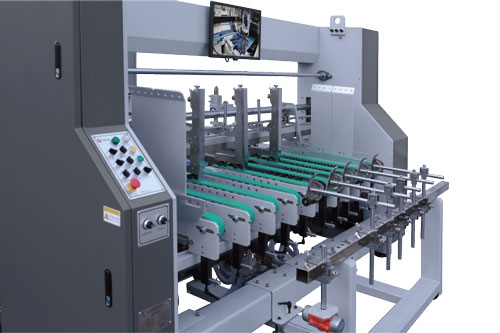

	Feeder ● Independent motor drive ● Adjustable vibration motor ● The side baffle is equipped with motor toadjust the width ● Three sets of adjustable feeder knives ● Adopt high performance suction belts torealize the stability of paper feeding

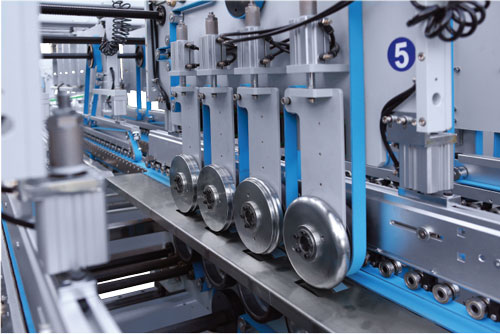

	Creasing ● Special secondary creasing function device ● Equipped with four sets of main drive creasing wheels ● The cylinder regulates the pressure of thelines creasing wheels ● can effectively improve the bellmouth and tolerance of final-folding boxes

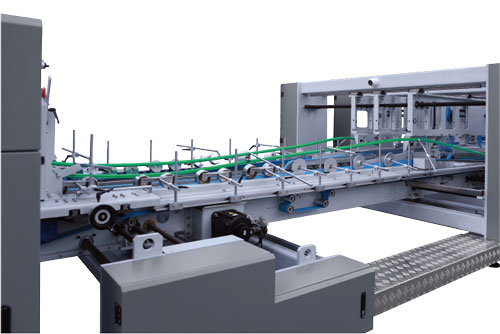

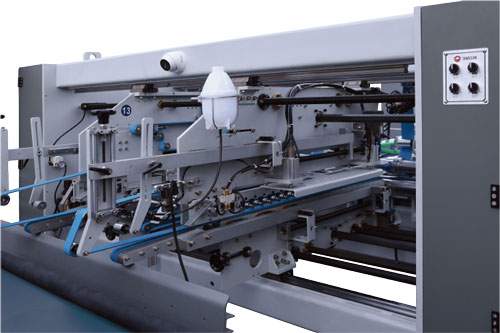

	Final-folding ● Upper and lower belt double drive maintransmission system, to ensure smoothdelivery of three and five layer cartons ● Left and right inflection belts by independentservo drive, the end of final-folding is equip-pedwith independent belts extrusion function
	Output ● Servo motor independent drive ● Electric adjustment length of upper andlower bracket telescopic rod ● Equipped with automatic belt tensionadjustment system
