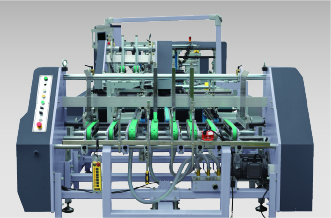

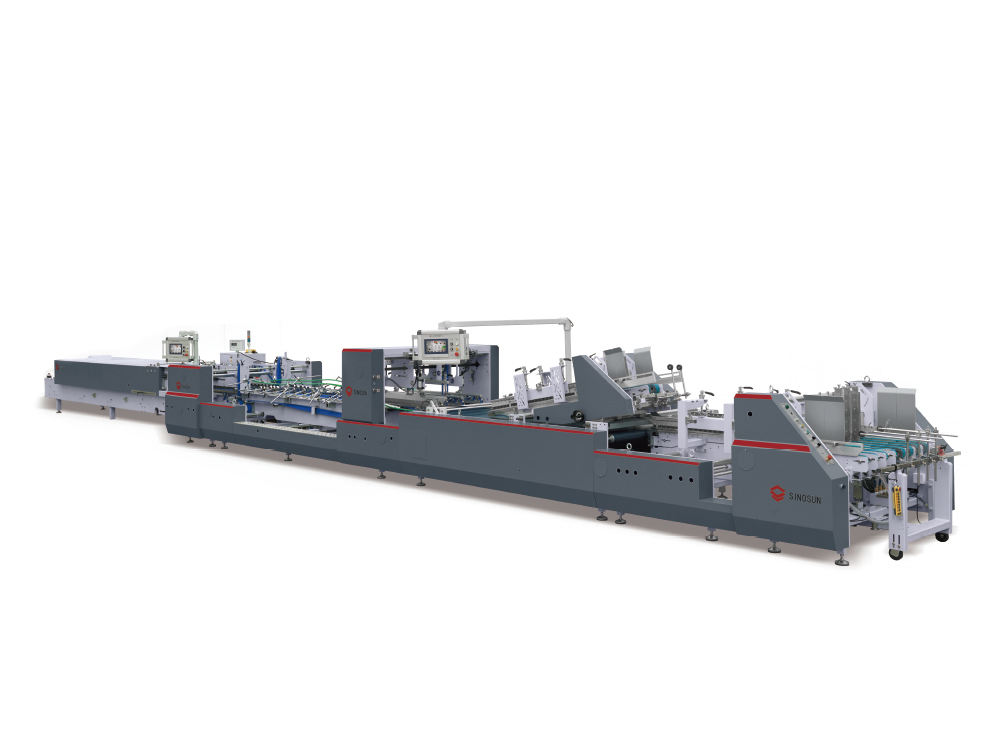

Small Format Double Feeder Folder Gluer

  • Model: YL-1450/1650AB

  • Parameters
  • Model: YL-1450/1650AB

Small Format Double Feeder Folder Gluer


Main feature

● This  is a A & B two independent feeders connected box folder gluer,  which plays a well role in high efficiency and cost reduction,by the full utilized feeding materials.

● The modular design can meet different requirements from  customers,and be more easier installation and operation , also be more effective to solve the production of special-shaped boxes.

● The transmission mode of the whole machine adopts hexagonal axis  and multi wedge  belts, by this  way,machine  is more efficient, energy-saving and noiseless.

● Follow the lightweight design principle, reduce energy consumption and achieve more simple and convenient operation.


Technical parameter

Model

YL-1450AB

YL-1650AB
Applicable material

200~800g/㎡ ( cardboard ) N/E/F/B flute corrugated  board

Speed range0 ~ 150m/min0 ~ 150m/min
Inching speed30m/min30m/min
Max blank width1450mm1650mm
Dimension(L*W*H)18400*2250*1600mm18400*2450*1600mm
Mechanical weight10T11T
Mechanical power38KW38KW
Max thickness of folded box15mm15mm
Compressed air6 bar6 bar
Air compressor capacity10 m3/h10 m3/h
Air tank capacity60L60L


Box parameter

Box type

Unfolded view

HL-1450PC-A

HL-1650PC-A

Linear box

L   120~1000

w  120~1000

H  120~710

L   120~1000

w  260 ~ 1650

H  120 ~ 810

Flat box

L   180~1000

w  450~1450

H  210~710

L   180~1000

w  450~1650

H  210~810

A feeder of

connected box

L   320~800

w  320~800

L   320~800

w  210~390

B feeder of connected box

L   255~800

w  455~1000

L   255~800

w  455~1000

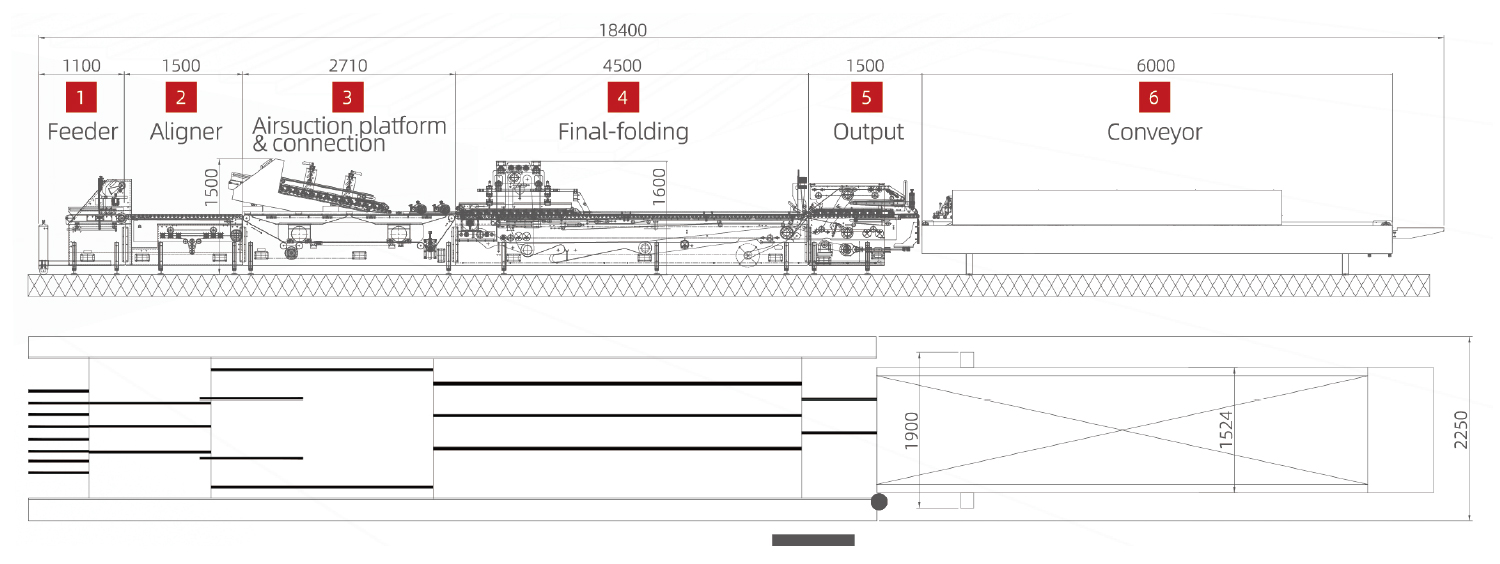

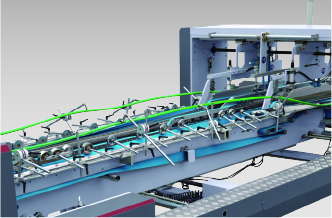

Lower feeder

● Independent motor drive

● Adjustable vibration motor

● Two sets of adjustable feeder  knives

● High performance suction belt is used to realize the stability of paper feeding

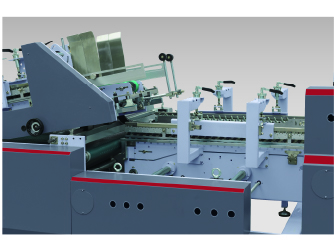

Aligner

● Independent adjustable side aligner, the lower bracket which is not parallel to the wallboard stretches the paper to be transported along a parallel guide device to ensure that the paper is parallel and aligned

● Simple, fast and flexible operation

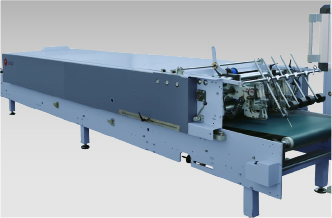

Connecting

● Servo motor drive

● The lower conveying platform adopts a large suction belt, which makes the paper run more stably

● Equipped with two high-power suction fans

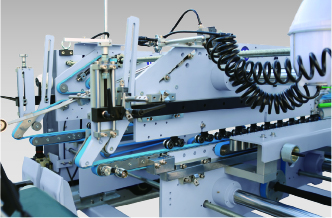

Upper feeder

● Independent servo motor drive

● Equipped with left and right baffles and two paper feeding knives

● Independent adjustable side aligner to ensure parallel alignment of the conveying paper

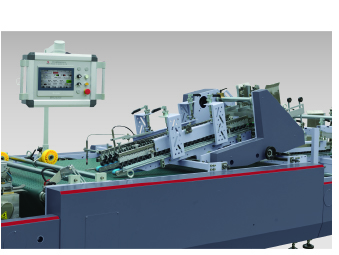

Final-folding

● The upper and lower belt drives ensure smooth paper delivery

● The middle plate adopts pneumatic lifting to facilitate the production of small box type with left and right guide plates

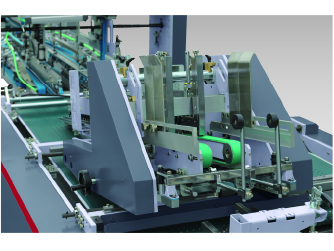

Output

● The telescopic rod of upper and lower brackets can be adjusted separately

● Equipped with automatic belt tension adjustment system

Conveyor

● Upper and lower independent motor drive

● According to different carton lengths, motors are equipped to control the upper part of the conveyor to move forward and backward

● Pneumatic pressure regulating system, easy to adjust, can effectively ensure uniform fitting pressure
