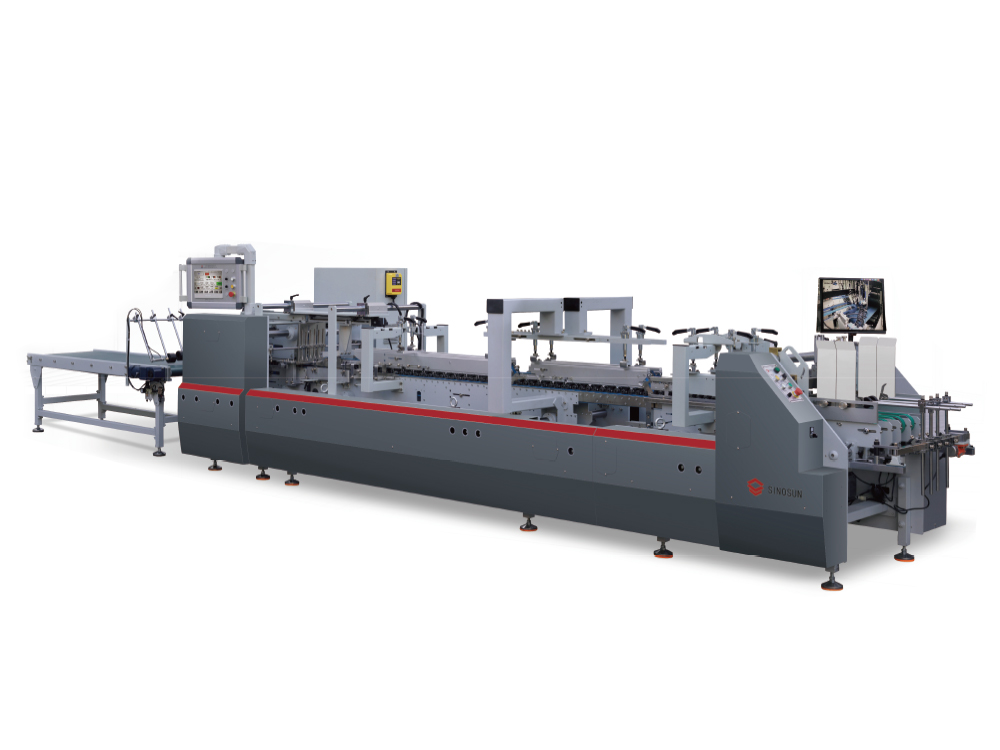

Stereo Box Automatic Folder Gluer
- Model： YL-650TD
- Parameters
- Model： YL-650TD
Stereo Box Automatic Folder Gluer
Main feature
● This is specialized folder gluer for stereo products,which can help to make three-dimensional envelope,cosmetic box,pharmaceutical box,underwear box,mobile protective film box,other digital products box etc.
● Equipped with hot melt glue system device,fast forming boxes and easy to shift between different boxes.
Technical parameter
| Model | YL-650TD |
| Applicable material | 200～650g/㎡ ( cardboard ) N/E/F/B flute corrugated board |
| Speed range | 0 ~ 120m/min |
| Inching speed | 30m/min |
| Max blank width | 650mm |

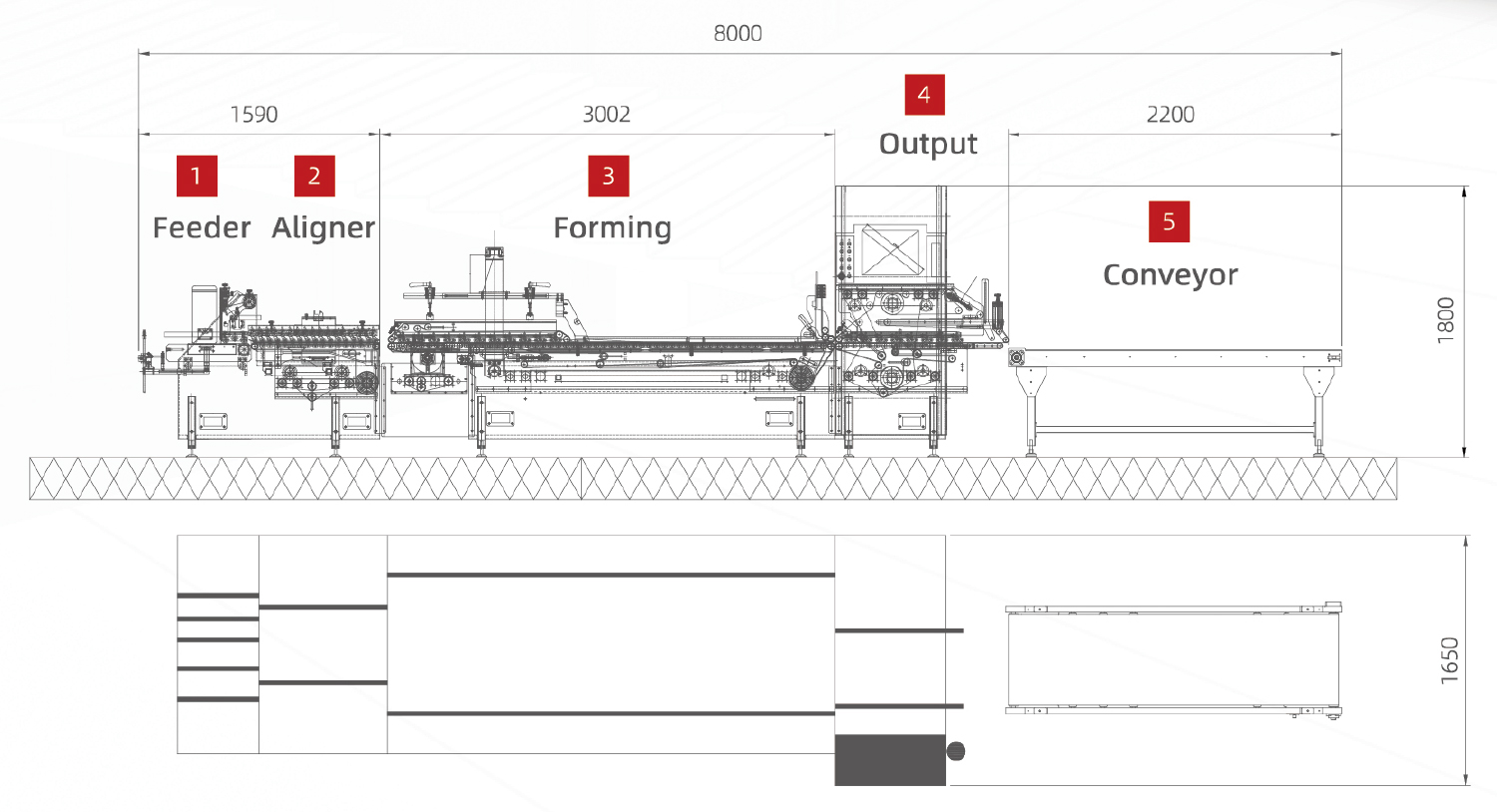

| Dimension(L*W*H) | 8500*1650*1800mm |
| Mechanical weight | 2.6T |
| Mechanical power | 11KW，AC220V/380V |
| Max thickness of folded box | 20mm |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m3/h |
| Air tank capacity | 60L |
Box parameter
Stereo box
Box type | Unfolded view | YL-650TD |
 | L 150～500 w 100～300 H 2～20 a 15~30 | |
 | Feeder ● Independent motor drive ● Adjustable vibration motor ● Two sets of adjustable feeder knives |

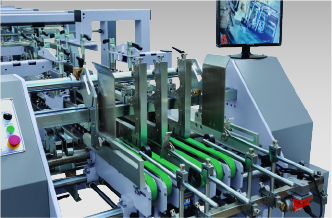

 | Aligner ● Independent adjustable side aligner, the lower bracket which is not parallel to the wallboard stretches the paper to be transported along a parallel guide device to ensure that the paper is parallel and aligned ● Simple, fast and flexible operation |

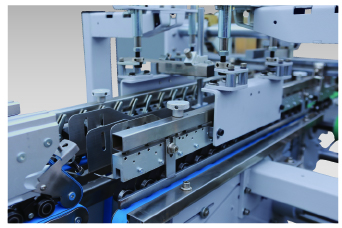

 | Forming ● Hot melt glue help forming and fixing ● Servo matching with mold for more accurate forming and positioning |
 | Output ● Both left and right sides equipped with positioning wheels,can help to form more well three-dimensional effect |
