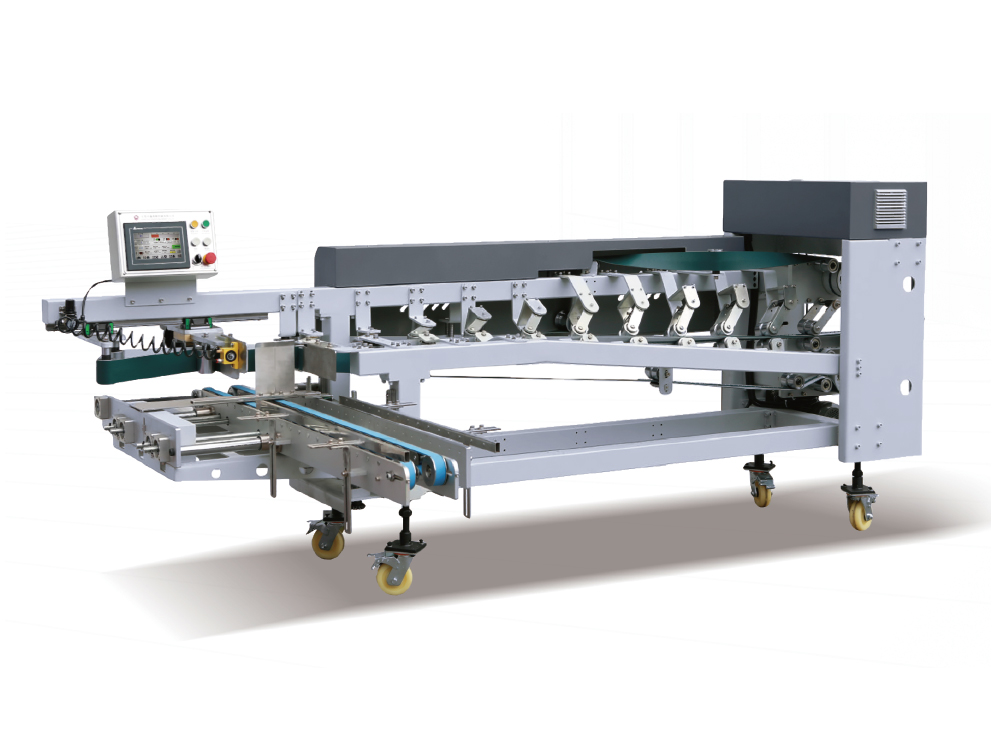

YL-500ST Automatic Stacker

YL-500ST automatic stacker is the auxiliary box collection device which is linkage with end of the folder gluer. With the transfer turning function, it realizes the 90 turn over conveying. It also increases the neatness and tightness of the box arrangement when box comes collection step. With high speed counting and collection, help to reduce labour and improve final packing efficiency.

    • Independent motor driven,can linkage with any brand folder gluer
    • Can collect many kinds of boxes such as straightline box,double sides box,crash lock bottom box,four corner box and fine flute corrugated box
    • Manual/Automatic dual mode,automatic mode can coordinate with folder gluer automatically,no need adjustment
    • Horizontal delivery platform can be electrically adjusted to fit different size boxes

  • Parameters
    • Independent motor driven,can linkage with any brand folder gluer
    • Can collect many kinds of boxes such as straightline box,double sides box,crash lock bottom box,four corner box and fine flute corrugated box
    • Manual/Automatic dual mode,automatic mode can coordinate with folder gluer automatically,no need adjustment
    • Horizontal delivery platform can be electrically adjusted to fit different size boxes

Automatic Stacker


YL-500ST automatic stacker is the auxiliary box collection device which is linkage with end of the folder gluer. With the transfer turning function, it realizes the 90  turn over conveying. It also increases the neatness and tightness of the box arrangement when box comes collection step. With high speed counting and collection, help to reduce labour and improve final packing efficiency.


Main feature

● Independent motor driven,can linkage with any brand folder gluer

● Can collect many kinds of boxes such as straightline box,double sides box,crash lock bottom box,four corner box and fine flute corrugated box

● Manual/Automatic dual mode,automatic mode can coordinate with folder gluer automatically,no need adjustment

● Horizontal delivery platform can be electrically adjusted to fit different size boxes


Technical parameter

Model

YL-500ST

Width

100~450mm

Length100~500mm
Dimension3550*2000*1350
Power1KW
Total mechanical weight0.6T
Voltage220V,3PH
Compressed air1bar



YL-500ST Automatic Stacker
YL-500ST automatic stacker is the auxiliary box collection device which is linkage with end of the folder gluer. With the transfer turning function, it realizes the 90 turn over conveying. It also increases the neatness and tightness of the box arrangement when box comes collection step. With high speed counting and collection, help to reduce labour and improve final packing efficiency.
